WWHS NIR-1000 Dry Fluorescent Immunoassay Analyser For cTnI Cardiac Detection
The cTnI (Cardiac troponin I) Rapid Quantitative Test along with WWHS Fluorescence Immunoassay Analyzer is intended for vitro quantitative determination of Cardiac troponin I (cTnI) in human whole blood, serum or plasma. It is mainly used for auxiliary diagnosis of myocardial infarction.
Description of WWHS NIR-1000 Dry Fluoroimmunoassay Analyser
High Accuracy
When the instrument tests the calibrated fluorescence test card, the deviation between the measured fluorescence value and the calibration value of the fluorescence test card is ±3.0%.
Repeatability
The variable coefficient of fluorescence value of fluorescence test cards of different intensities repeatedly measured by the instrument CV≤2.0%
WWHS Assay List
| Cardiac | ||||||
| cat#. | Product item | Specimen | Reaction Time | Measure Range | Clinical Range | Itended Use |
| 1 | cTnI | WB/Serum/Plasma | 12min. | 0.1-40ng/ml | <0.3ng/ml | several heart diseases including myocardial infarction and heart failure. |
| 2 | Myo | WB/Serum/Plasma | 12min. | 5-400ng/ml | <58ng/ml | acute myocardial infarction (AMI) in early stage. |
| 3 | CK-MB | WB/Serum/Plasma | 12min. | 1-200ng/ml | <5ng/ml | acute myocardial infarction (AMI) in early stage. |
| 4 | NT-proBNP | WB/Serum/Plasma | 10min. | 20-35000pg/ml | Under 75:0~347pg/mL, Over 75:0~449pg/mL |
heart failure . |
| 5 | D-Dimer | WB/Plasma | 10min. | 40-10000ng/ml | <500ng/ml | disseminated intravascular coagulation (DIC),deep vein thrombosis (DVT),pulmonary embolism (PE), myocardial infarction, cerebral infarction, etc. |
| 6 | cTnI+Myo+CKMB | WB/Serum/Plasma | 12min. | same with single item | same with single item | Triple marker of myocardial infarction. |
| 7 | ST2 | WB/Serum/Plasma | 10min. | 10-400ng/ml | <35ng/ml | heart failure . |
| 8 | Lp-PLA2 | WB/Serum/Plasma | 10min. | 10-900ng/ml | <175ng/ml | Risk evaluation of ACS and atherosclerotic ischemic stroke patients. |
| 9 | S100-β | WB/Serum/Plasma | 10min. | 0.05-10ng/ml | <0.2ng/ml | Cerebral infarction, cerebral injury. |
| Inflammation | ||||||
| 10 | CRP / hs-CRP | WB/Serum/Plasma | 3min. | 0.5-200mg/L | CRP<10mg/L,hs-CRP<1mg/L | nonspecficity inflammatory marker. |
| 11 | SAA | Serum | 5min. | 1-200mg/L | <10mg/L | inflammation&infection. |
| 12 | PCT | WB/Serum/Plasma | 10min. | 0.2-100ng/ml | <0.5ng/ml | Sepsis |
| 13 | CRP+SAA | WB/Serum/Plasma | 5min. | same with single item | same with single item | inflammation&infection. |
| 14 | IL-6 | WB/Serum/Plasma | 10min. | 5-4000pg/ml | 10pg/ml | diabetes,rheumatoid arthritis,etc |
| Thyroid Hormone | ||||||
| 15 | TSH | Serum/Plasma | 15min. | 0.3-100mU/L | 0.35-5mU/L | hyperthyroidism and hypothyroidism |
| 16 | TT3 | Serum/Plasma | 15min. | 0.5-10nmol/L | 1.3-3.1nmol/L | thyroid dysfunction |
| 17 | TT4 | Serum/Plasma | 15min. | 5-300nmol/L | 66-181nmol/L | thyroid dysfunction |
| 18 | FT3 | Serum/Plasma | 15min. | 1-100pmol/L | 4-10pmol/L | thyroid dysfunction |
| 19 | FT4 | Serum/Plasma | 15min. | 5-300pmol/L | 19-39pmol/L | thyroid dysfunction |
| Tumor Marker | ||||||
| 20 | AFP | Serum/Plasma | 15min. | 2.5-200ng/ml | <20ng/ml | pregnancy cancer |
| 21 | CEA | Serum/Plasma | 15min. | 1-200ng/ml | <5ng/ml | colon cancer, colorectal cancer,etc. |
| 22 | NSE | Serum/Plasma | 15min. | 1-400ng/ml | <16ng/ml | non-small cell lung cancer |
| 23 | FOB | fecal specimens | 10min. | 50-1000ng/ml | <100ng/ml | Abnormal recessive gastrointestinal bleeding |
| 24 | PG II | Serum/Plasma | 15min. | 1-100ug/L | PGI/PGII>3.0 | gastric abnormalities |
| 25 | PG I | Serum/Plasma | 15min. | 2.5-200ug/L | >70ng/ml | gastric abnormalities |
| 26 | TPSA | Serum/Plasma | 15min. | 0.5-40ng/ml | <4ng/ml | prostate cancer |
| 27 | FPSA | Serum/Plasma | 15min. | 0.1-10ng/ml | <1ng/ml | prostate cancer |
| 28 | CA12-5 | Serum/Plasma | 15min. | 20-500U/ml | <35U/ml | ovarian cancer |
| 29 | CA15-3 | Serum/Plasma | 15min. | 10-400U/ml | < 25 U/mL | breast cancer |
| 30 | HE4 | Serum/Plasma | 15min. | 50-2000pmol/L | <140 pmol/L | ovarian cancer |
| 31 | CA19-9 | Serum/Plasma | 15min. | 10-400U/ml | < 27 U/mL | pancreatic cancer |
| 32 | β-HCG | Serum/Plasma | 15min. | 5-400mIU/ml | <10 mIU/mL | Early pregrancy, ectopic HCG cancer,incomplete abortion |
| 33 | CK19(Cyfra21-1) | Serum/Plasma | 15min. | 0.5-50ng/ml | <2.5ng/ml | non-small cell lung cancer |
| Fertility | ||||||
| 34 | HCG / β-HCG | Serum/Plasma | 10min. | 5-20000mIU/ml | <5 mIU/mL | early pregrancy. |
| 35 | AMH | Serum/Plasma | 10min. | 0.1-16ng/ml | Male: 20-60 years old, 0.92-13.89 ng/mL Female: 20-29 years old, 0.88-10.35 ng/mL 30-39 years old, 0.31-7.86 ng/mL 40 -50 years old, <5. 07 ng/mL |
ovarian reserve level |
| Gastrointestinal | ||||||
| 36 | FOB | fecal specimens | 10min. | qualitative | qualitative | gastrointestinal hemorrhage. |
| 37 | TRF | fecal specimens | 10min. | qualitative | qualitative | gastrointestinal hemorrhage. |
| 38 | FOB+TRF | fecal specimens | 10min. | qualitative | qualitative | gastrointestinal hemorrhage. |
| Infection | ||||||
| 39 | C.Pneumonia | WB/Serum/Plasma | 15min. | qualitative | qualitative | CP infection |
| 40 | M.Pneumonia | WB/Serum/Plasma | 15min. | qualitative | qualitative | MP infection |
| 41 | Covid-19 Antigen | nasal swab, throat swab or nasal wash/aspirate specimens | 15min. | qualitative | qualitative | respiratory tract |
| 42 | Covid-19 Ab IgG/IgM | WB/Serum/Plasma | 15min. | qualitative | qualitative | respiratory tract |
| 43 | FluA | nasal swab, throat swab or nasal wash/aspirate specimens | 15min. | qualitative | qualitative | respiratory tract |
| 44 | FluB | nasal swab, throat swab or nasal wash/aspirate specimens | 15min. | qualitative | qualitative | respiratory tract |
| Renal Injury | ||||||
| 45 | CysC | WB/Serum/Plasma | 5min. | 0.4-9mg/L | 0.5-1.1mg/L | renal function |
| 46 | NGAL | Urine | 10min. | 10-1500ng/mL | <132ng/mL | acute kidney injury. |
| Other | ||||||
| 47 | FERR | Serum | 5min. | 10-500ng/ml | Male:24ng/mL~335ng/mL, Female:11ng/mL~307ng/mL |
iron metabolism related diseases, such as hemochromatosis and iron deficiency anemia |
| 48 | HbA1c | WB | 10min. | 4%-14% | 4%-6% | diabetes |
| 49 | VD | Serum/Plasma | 15min. | 8-70ng/mL | 19-57ng/mL | fetation |

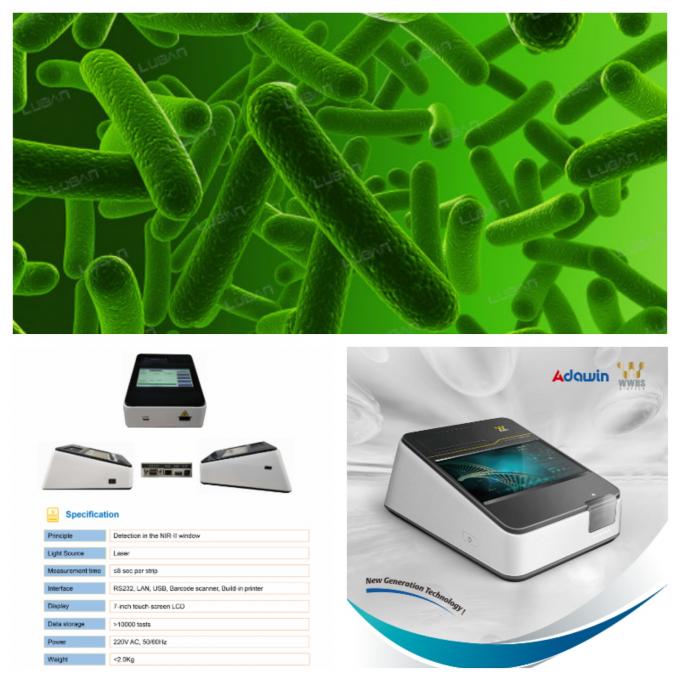

About NIR-1000 Dry Fluoroimmunoassay Analyser
It is a fluorescence immunochromatographic analysing system with internal temperature
control,
which can help diagnose conditions such as infection, diabetes, cardiovascular diseases,
renal injury and cancers, etc.
Immunofluorescence technology
Testing time less than 15 minutes
Easy-to-use touch-screen platform,multi-language system
Reagents stored at room temperature for 12 months
Product Features
1 Wide-Range Diagnostics, It can be used in following areas:
1) Department of thoracic Surgery
2) Clinical Laboratory
3) Department of Emergency
4) First Aid Community Hospital
5) Department of Respiration
6) CCU/ICU
7) Department of cardiology
8) Department of Geriatrics
2 Simple Procedure To Operate
1) Sample Can Be Plasma&whole Blood
2) Choose Internal Or External According To Needs
3) Single&Batch Processing
only two simple steps: Add 100ul blood sample to the test strip and wait for 15 minutes, then insert the test strip into the device and get the results
